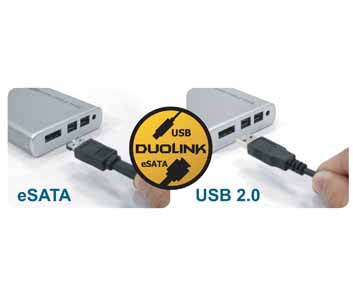

The SATAPro 2.5-inch HDD Enclosure offers a solution for users that wish to use an external SATA solution for a notebook or home computer. The SATAPro 2.5-inch HDD Enclosure extends connection flexibility with a combination port of eSATA and USB2.0 port and 2 FireWire 400 ports. The DuoLink eSATA/USB 2-in-1 IO connector enables SATA HDD usage with any notebook or desktop system by converting internal SATA data signals to USB 2.0 or directly to external SATA and saves space with dual interface single port connectivity.
The rugged aluminum housing provides efficient heat dissipation while maintaining optimum HDD operation temperature, and impact protection while keeping your high RPM SATA hard drive safe from damages and drops.
The patented secure-fixing mechanism and anti-shock damper strips sustain HDD stability and the HDD spin down function ensures efficient operation. To automatically reduce power consumption, the hard disk inside the Enclosure spins down during sleep mode and automatically spins up when the host system is waken.
The easy-to-carry plus simple-to-install compacted Enclosure guarantees to have quick plug-n-play connection and immediate access for all your valuable data.
Patented secure-fixing mechanism
Link the SATAPro to the newest MAC using our FireWire 400-to-800 Adapter!
|
|
Supports current SATA II compliant HDDs, fully backward compatible with SATA 1.0 and SATA 1.0a compliant HDDs
Supports Hi-Speed USB data transfer speed up to 480 Mbps
Supports eSATA data transfer speed up to 1500/3000 Mbps
Supports IEEE 1394 data transfer speed up to 400Mbps
Supports hot-plug and effortless drive swapping
Combines enclosure and FireWire repeater functionality
Sustains HDD stability, and keep HDD safe from damages and drops with patented secure-fixing mechanism and anti-shock damper strips
Protects housing with copper pillar reinforced screw guides
Provides efficient heat dissipation and maintains optimum HDD operation temperature with rugged aluminum housing
Prevents HDD damage due to over-tightening with auto-limiting segmented screws
Reduces power consumption with HDD spin up/down support
Protects housing with copper pillar reinforced screw guides

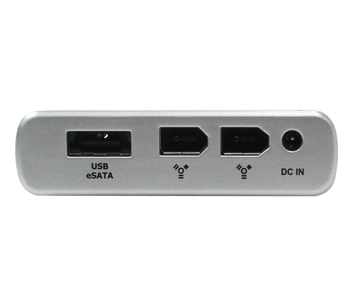

Extends connection flexibility to host with plug-n-play via High-Speed USB 2.0, eSATA and IEEE 1934a ports
|
|
|
| Specifications |
Download |
| Bus Interface |
eSATA /USB2.0 /1394a
|
| Data Speeds |
eSATA : up to 3000 Mbps
USB 2.0 Port: up to 480Mbps
IEEE 1394a (FireWire 400) port: up to 400 Mbps
|
| Connector |
One DuoLink eSATA / USB type A 2-in-1 connector
Two 6-Pin 1394a connectors
|
| HDD Support |
2.5" HDD with SATA interface (support of SATA II and 1.0/1.0a)
|
| LED |
Power / Access
|
| Power Supply |
5V/2A, 110~240V universal AC/DC adapter or 1394 bus power
|
| Dimension (L x W x H) |
129.5 x 80 x 21 MM
|
| Weight (without HDD) |
150 G
|
| |
|
|
|
|
|
SATAPro 2.5-inch HDD Enclosure
USB cable
1394a cable
eSATA cable
External power supply
Fasten screws
Footpads
Soft case
Quick start guide
|
|
|
|
|
