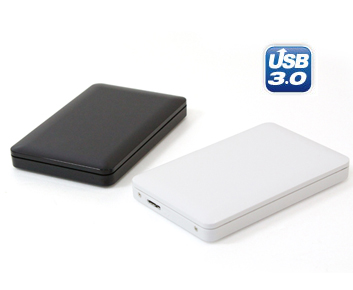

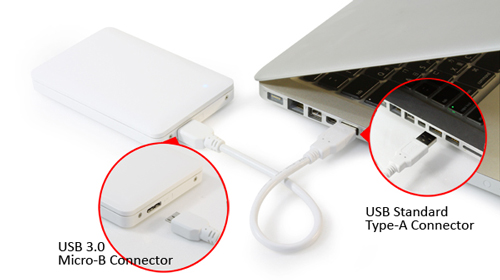

Being part of our spectacular DataTale Mobile Series, the AU-S10X is known for its USB 3.0 feature, dramatically increasing its speed! The DataTale Mobile USB 3.0 Enclosure is made backward-compatible (connectible via Micro-B to Standard type-A) and can work with all USB 2.0 enabled hosts, as well as all forthcoming USB 3.0 models!

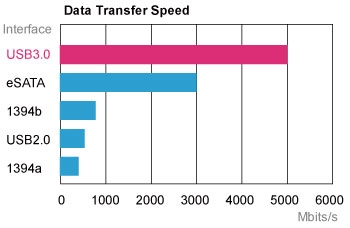

With the advantage of "SuperSpeed" USB bus technology, the delivering speed has become 10 times faster than USB 2.0, reaching up to 5 Gbit/s*!
All our DataTale Mobile Series come bundled with a bus-powered USB cable to help eliminate the need of an AC adapter, while enhancing portability and reducing device footprint.
*These features only apply if the host port is also USB 3.0.

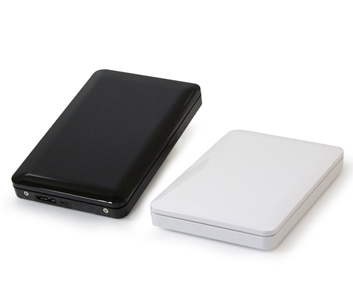

Furthermore, the DataTale Mobile USB 3.0 Enclosure comes with a gorgeous heat-resistance and multi-colored casing selection (elegant White or mysterious Black), plus simple linings to present an elegant extravagance. The copper-pillar reinforced screw guides enhance casing durability to extend product life, regardless of how often the hard drive is swapped. The hidden LED indicates power and data access statuses. The hard disk spin-down feature ensures efficient operation by reducing power consumption. The secure mechanics makes disk installation easy and fast!
The DataTale Mobile USB 3.0 Enclosure provides users with the ability to quickly back-up and store important digital data plus much more!
|
|
Compatible with USB 3.0 and USB 2.0
Data transfer speed up to 5Gbits/s
Supports 2.5-inch SATA II compliant hard disk
Powers drive via USB bus
Reduces power consumption with hard disk spin up/down support
Connects to host by plug-n-play
Supports hot-plug and hot-swap
Enables frequent disk replacement with copper-pillar reinforced screw guides
|
|
|
| Specifications |
Download |
| Connector |
USB 3.0 x 1
|
| Disk Support |
2.5-inch SATA hard disk or SSD*
*: Due to restrictions of each individual SSD's controller and user's host system, not all the SSDs are compatible when utilized with the DataTale Mobile.
|
| Data Transfer Speed |
USB 3.0: up to 5Gbits/s
USB 2.0: up to 480Mbits/s
|
| Read/Write Speed |
95MB/s*
*Under Windows 7 with a WD 750G hard disk
|
| System Material |
Plastic casing
|
| Status Indicator |
Power On / Access
|
| Power Supply |
Bus power from host via USB cable
|
| Dimension |
123 (L) x 80 (W) x 16.6 (H) mm
|
| Weight (without disk) |
86 G
|
| |
|
|
|
|
 |
|
 |
| JMS539 for Mac |
| This firmware update is only for the chipset JMS539. Please read the PDF first in the zip file when the firmware is installed. |
|
| JMS539 for Windows |
| This firmware update is only for the chipset JMS539. Please read the PDF first in the zip file when the firmware is installed. |
|
| JMS567 for Windows |
| This firmware update is only for the chipset JMS567. Please read the PDF first in the zip file when the firmware is installed. |
|
|
|
|
DataTale Mobile USB 3.0 Enclosure
USB cable
Screws

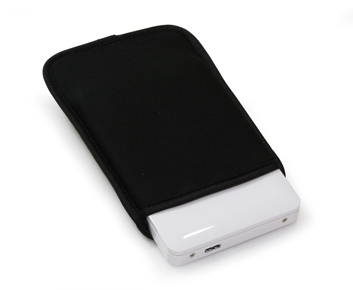

Soft sleeve
Quick Start Guide
|
|
|
|
|
