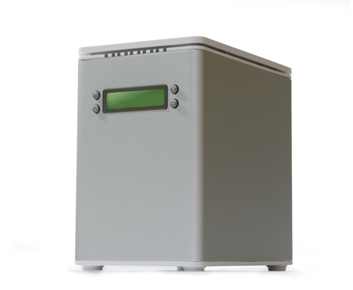

The DataTale 4-Bay SMART RAID System is a worthwhile investment! It provides robust storage management under JBOD, RAID 0 (Striping), RAID 1 (Mirroring), Span, Clone, RAID 5, and RAID 1+0!
The DataTale 4-Bay SMART RAID System features multiple RAID tasks, making complicated operations possible including the HotSpare and Automatic Rebuild features for RAID 1+HotSpare, Clone+HotSpare, and RAID 5+HotSpare! More importantly, this heavy-duty RAID system has the unique capability to support more than 2TB HDDs of storage load!

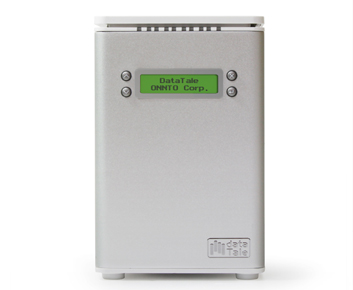

With a push of a few buttons, the front panel LCD will allow fundamental RAID operation and system status monitor anywhere! It displays general information on any inserted HDDs, the RAID System itself, and basic RAID functions!
The RAID MASTER and GUI (Graphic User Interface) permits professionals and enterprises to centralize and effectively oversee complicated RAID applications. With the RAID MASTER you can configure multiple RAID tasks, set the alerting feature to report any system problems, and customize storage activities for your RAID System.

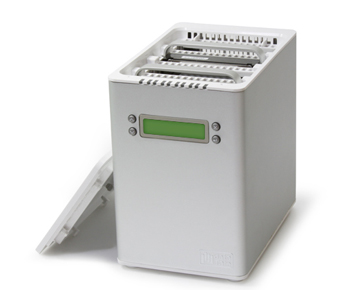

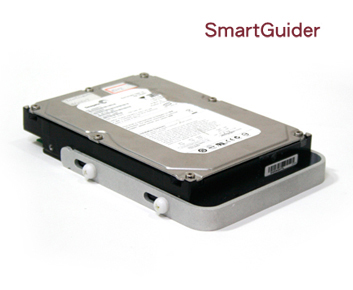

The SmartGuider* design makes HDD installation, removal and insertion, an absolute breeze, enabling trayless HDD positioning, and effortless HDD hot-swapping when necessary and efficient heat dissipation. It stands upright maximizing airflow and exhausting heat via vents. This combined with the rugged aluminum case and low-dB fans makes the entire unit an efficient channel for heat dissipation.
*Taiwan New Design Patent # M354309

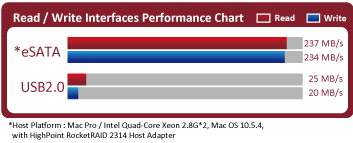

The high-speed performance in data transfer by USB 2.0 and eSATA, along with the DataTale 4-Bay SMART RAID System tops consumers's expectations. The LED Indicators (power, connection, health, access, rebuild, and RAID Alert) keep users well-informed.
Important Note: It is necessary and highly recommended to use the disk with "RAID" editions in order to avoid the compatibility problem.

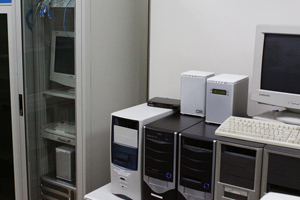

The DataTale RAID Systems are working hard in the server room.
|
|
Supports current SATA II compliant HDDs, fully backward compatible with SATA 1.0 and SATA 1.0a compliant HDDs**The "Desktop" editions of WD hard disks are not recommended. See Are there any limitations for SATA hard disks in RAID Systems in the "DataTale RAID System" section under Troubleshooting page
Appreciates Hot Plug support and effortless drive swapping
Features a trayless function with the SmartGuider
Makes the entire Unit an efficient channel for heat dissipation and maximizes airflow with low-dB fans, aluminum housing, and upright mechanical design
Prevents over-tightened HDDs with auto-limiting segmented screws
Monitors system status via LED Indicators (power, connection, health, access, rebuild, and RAID Alert), LCM or RAID MASTER
Configures RAID modes easily using LCM or RAID MASTER, no IT expertise required
Provides robust storage management under JBOD (Non RAID), RAID 0 (Striping), RAID 1 (Mirroring), Span, Clone, RAID 5, and RAID 1+0, and optional HotSpare
Supports both on-line & off-line rebuild

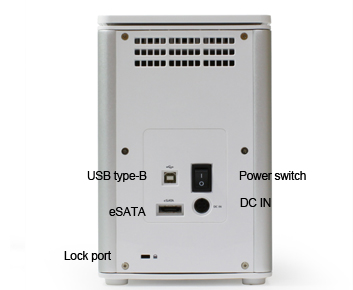

Extends connection flexibility to host with plug-n-play via Hi-Speed USB 2.0 and eSATA ports
|
|
|
| Specifications |
Download |
| Connector |
eSATA x 1, USB 2.0 x 1
|
| HDD Support |
3.5" SATA HDD*
*Identical HDD recommended, same manufacturer, capacity and RPM
|
| RAID Mode |
JBOD (Non RAID), RAID 0 (Striping), RAID 1 (Mirroring), Span, Clone, RAID 5, RAID 1+0, and optional HotSpare
|
| Data Transfer Speed |
eSATA: up to 3Gbit/sec
USB 2.0: up to 480Mbit/sec
|
| System Material |
Aluminum case with plastic parts
|
| LED Indicators |
Power / Connection / Health / Access / Rebuild / RAID Alert
|
| Power Supply |
Input: AC 100~240V
Output: DC +12V/5A
|
| FAN |
Dimension: 80 x 80 x 10 mm x 2
Speed: 1900 R.P.M +-10%
Noise: 17.13 dB(A) max
|
| Dimension |
210 (L) x 138 (W) x 213 (H) MM
|
| Weight (without HDD) |
2.3 KGS
|
| Certification |
CE, FCC
|
| |
|
|
|
 |
|
 |
| RAID MASTER for MAC |
| RAID MASTER is a software tool to set up RAID mode management for SMART RAID |
|
| RAID MASTER for PC |
| RAID MASTER is a software tool to set up RAID mode management for SMART RAID |
|
|
|
|
|
DataTale 4-Bay SMART RAID System
USB cable
eSATA cable
External power supply
HDD Screws x 16
Spare HDD screws x 4
Handles x 4
Quick start guide
|
|
|
|
|
