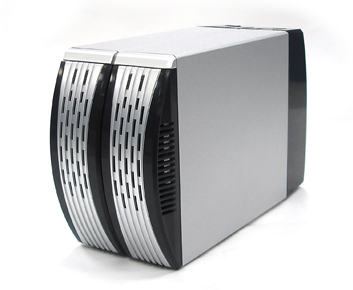

The DataWhale 2-Bay RAID System offers the fastest available data access with the new eSATA shield connector. Early adopters will appreciate the speed and convenience of converting the internal SATA data signal to an external USB 2.0 signal, enabling use with any computer that has a USB port, plus increase connectivity options and convenience.
The RS-M2TS offers the fastest available data access with the new eSATA shield connector, and early adopters will appreciate the speed and convenience of this recent advance. It can convert the internal SATA data signal to an external USB 2.0 signal, enabling use with any computer that has a USB port, and increase connectivity options and convenience.
The entire DataWhale 2-Bay RAID family meets users demands for RAID storage management, Striping (RAID 0), Spanning, Mirroring (RAID 1) and JBOD (Non RAID) applications.
Using the DataWhale 2-Bay RAID System is as simple and familiar as using a single bay external enclosure. Simply install the HDDs, set the chosen RAID mode via Mode Switch, connect the cables, and power on for a massive storage System on your desktop. The need for software and GUI installation is eliminated. Onboard LED indicators keep you apprised of the system, connection, and HDD status, while the user-friendly HDD tray design makes HDD hot swapping effortless.
The DataWhale 2-Bay RAID System features an outstanding mechanical design and rugged aluminum elegance. The high quality, silent-running fan exhausts hot air away from the internal HDDs, dramatically enhancing internal air flow thoroughly and efficiently to cool the high RPM SATA HDDs.
|
|
Supports current SATA II compliant *HDDs, fully backward compatible with SATA 1.0 and SATA 1.0a compliant HDDs*
*The "Desktop" editions of WD hard disks are not recommended. See our Troubleshooting

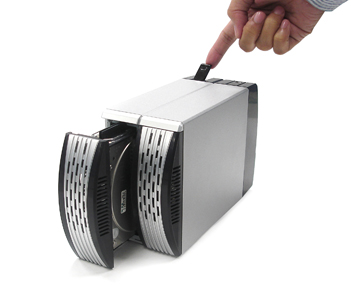

Enables HDD hot-plug, effortless HDD hot swapping, and simplified HDD installation via user friendly HDD tray design
Ensures data integrity with redundant backup capability
Eliminates potential downtime, repair costs, and lost sales due to disk failure
Keeps user apprised of the system, connection, and HDD status easily via LED indicators
Configures RAID modes easily, no IT expertise required
Simplifies RAID management, no software installation required
Meets user's demands for RAID storage management using Striping (RAID 0), Spanning, Mirroring (RAID 1), and JBOD (Non RAID) applications
Achieves the fastest performance via Striping (RAID 0) mode
Supports automatic rebuild under Mirroring (RAID 1) mode

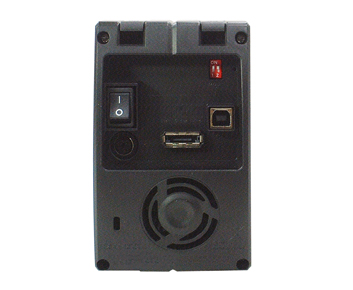

Extends connection flexibility to host with plug-n-play via High-Speed USB 2.0 and eSATA ports
|
|
|
| Specifications |
Download |
| Connector |
USB 2.0 x 1; eSATA x 1
|
| HDD Support |
3.5" SATA HDD
(Identical HDD recommended - same manufacturer, capacity and RPM)
|
| RAID Mode |
Striping (RAID 0), Spanning, Mirroring (RAID 1), JBOD (Non RAID)
|
| Data Transfer Speed |
eSATA: up to 3000Mbps,
USB 2.0: up to 480Mbps
|
| System Material |
Aluminum case with plastic front and rear panels
|
| LED |
Power On / Power Off / Access / Rebuild / Error
|
| Power Supply |
Input: AC 90-264V; Output: DC +12V/2A, +5V/2A
Peak current: +12V/4A, +5V/3A
|
| FAN |
40 x 40 x 10 MM
|
| Dimension |
220 x 85 x 130 MM
|
| Weight (without HDD) |
920 G
|
| Certification |
CE, FCC
|
| |
|
|
|
|
|
| Review |  | | DataWhale 2 Bay RAID System @ Technoyard.com Its RAID system takes us to the next step in hard drive enclosures with it supporting an array of RAID modes and support for 1 Terra Byte of storage. |
|  | |  | |
|
|
|
|
RS-M2TS
USB cable
eSATA cable
External power supply
Fastening screws
Quick start guide
|
|
|
|
|
