TD-M12O
DataTale SATAPro

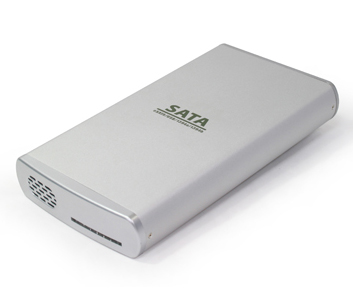

The SATAPro 3.5-inch HDD Enclosure houses a SATA HDD with protection inside an external enclosure and can be connected to any host computer via the new SATA II (eSATA) connector, including USB interface. In addition, it has a FireWire 400 and two FireWire 800 connection ports for daisy chain.

  • ｜Overview
  • ｜Features
  • ｜Specifications
  • ｜Review
  • ｜Package

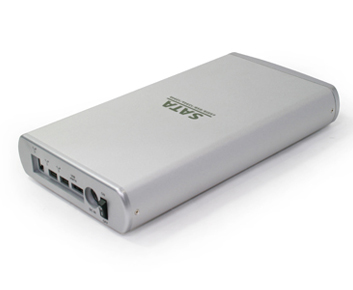

The SATAPro 3.5-inch HDD Enclosure offers a ultimate solution for users that wish to use an external SATA solution for a notebook or home computer. The SATAPro 3.5-inch HDD Enclosure extends connection flexibility with a combination port of eSATA and USB2.0 port (DuoLink), plus FireWire 400 and 800 ports; thus, reducing device footprint while delivering exceptional performance and reliability for both Mac and PC users.

The DuoLink eSATA/USB 2-in-1 IO connector enables SATA HDD usage with any notebook or desktop system by converting internal SATA data signals to USB 2.0 or directly to external SATA and saves space with dual interface single port connectivity. For users with internal SATA connector equipped desktop systems, the optional eSATA Host Adapters offer a simple solution for adding eSATA connectivity.

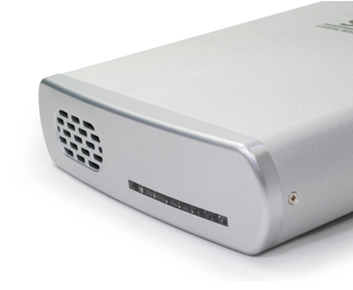

The rugged aluminum housing provides efficient heat dissipation while maintaining optimum HDD operation temperature, and impact protection while keeping your high RPM SATA hard drive safe from damages and drops. The quiet-running, low power fan provides excellent air circulation by drawing air into the enclosure and through the HDD. It is the perfect choice for 500GB or larger SATA HDDs.

The rugged aluminum housing provides efficient heat dissipation while maintaining optimum HDD operation temperature. Its load-bearing support structure keeps your high RPM SATA hard drive safe from force and pressure damages. The patented Stable Mounting System, with its reverse-C mounts and shock-absorbing suspension system, protects the HDD against impact damage and accidental drops.

The HDD spin down function ensures efficient operation. To reduce power consumption, the hard disk inside the Enclosure will spin down during sleep mode and will automatically spin up when the host system is waken.

The easy-to-carry plus simple-to-install compacted Enclosure guarantees to have quick plug-n-play connection and immediate access for all your valuable data (which would require an external power supply).

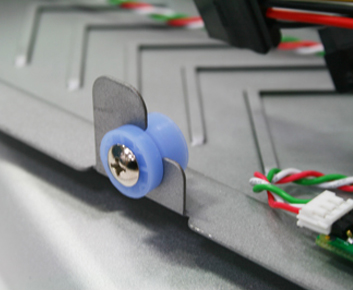

Patented secure mounting system
  • Supports current SATA II compliant HDDs, fully backward compatible with SATA 1.0 and SATA 1.0a compliant HDDs

  • Supports Hi-Speed USB data transfer speed up to 480 Mbps

  • Supports eSATA data transfer speed up to 3000 Mbps

  • Supports IEEE 1394 data transfer speed up to 400 Mbps (FireWire 400) and 800Mbps (FireWire 800)

  • Supports hot-plug and effortless drive swapping

  • Combines enclosure and FireWire repeater functionality

  • Sustains HDD stability, and keep HDD safe from damages and drops with the patented Stable Mounting System (shock-absorbing suspension system, "reverse-C" mounts, and anti-shock chamber)

  • Protects housing with copper pillar reinforced screw guides

  • Provides efficient heat dissipation and maintains optimum HDD operation temperature with rugged aluminum housing

  • Prevents HDD damage due to over-tightening with auto-limiting segmented screws

  • Eliminates power supply removal with built-in power switch

  • Maximizes thermal protection with Aluminum construction

  • Reduces power consumption with HDD spin up/down support

  • Extends connection flexibility to host with plug-n-play via High-Speed USB 2.0, eSATA, IEEE 1934a and 1934b ports

    		•
    Specifications Download
    Bus Interface eSATA / USB2.0 / IEEE 1394a / IEEE 1394b
    Data Speeds eSATA : up to 3000Mbps
    USB 2.0 Port: up to 480Mbps
    IEEE 1394a (FireWire 400) port: up to 400 Mbps
    IEEE 1394b (FireWire 800) port: up to 800 Mbps
    Connector One DuoLink eSATA /USB type A, 2-in-1 connector
    Two 9-Pin 1394b bilingual connectors
    One 6-Pin 1394a connector
    HDD Support 3.5" HDD with SATA interface (support of SATA II and 1.0/1.a)
    LED Power / Access
    Power Supply 12V/2A and 5V/2A dual output, 90~264V AC/DC adapter
    Dimension (L x W x H) 241 x 133 x 36 MM
    Weight (without HDD) 585 G

    English Deutsch Français
    This update is to enable 3TB drive in SATAPro 3.5-inch enclosure. This firmware update must be done for Windows XP or Vista in 32-bit systems with USB connection.

    Attention: This update is only meant for the TDM120 model, NOT the TBM120 model. Although, they are similar to each other, their design and software are NOT EXACTLY the same.

    "If you seek quality engineering and responsive customer support for hard drive enclosures and accessories, try ONNTO. I was really pleased with my recent purchases from ONNTO... ?? Commented by W. Pearson, Hong Kong.
    • SATAPro 3.5-inch HDD Enclosure
    • USB cable
    • eSATA cable
    • 1394a cable
    • 1394b cable
    • External power supply
    • Fastening screws
    • Quick start guide
