TA-M12O

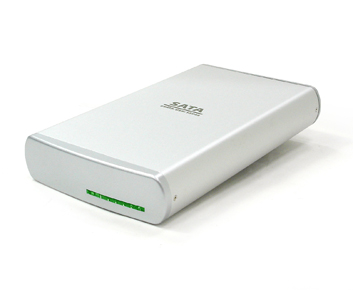

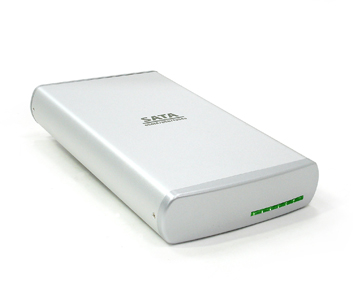

DataTale SATAPro
The SATAPro 3.5-inch HDD Enclosure houses a SATA HDD with protection inside an external enclosure and can be connected to any host computer via the new SATA II (eSATA) connector, including USB interface. it also has two FireWire 400 connection ports allowing flexible daisy chain function.

  • Overview
  • Features
  • Specifications
  • Review
  • Package

The SATAPro 3.5-inch HDD Enclosure offers a solution for users that wish to use an external SATA solution for a notebook or home computer. The SATAPro 3.5-inch HDD Enclolsure extends connection flexibility with one eSATA, one USB2.0 port and two FireWire 400 ports; thus, reducing device footprint while delivering exceptional performance and reliability for both Mac and PC users.

The rugged aluminum housing provides efficient heat dissipation while maintaining optimum HDD operation temperature, and impact protection while keeping your high RPM SATA hard drive safe from damages and drops.

The rugged aluminum housing provides efficient heat dissipation while maintaining optimum HDD operation temperature. Its load-bearing support structure keeps your high RPM SATA hard drive safe from force and pressure damages. The patented Stable Mounting System, with its reverse-C mounts and shock-absorbing suspension system, protects the HDD against impact damage and accidental drops.

The HDD spin down function ensures efficient operation. To reduce power consumption, the hard disk inside the Enclosure will spin down during sleep mode and will automatically spin up when the host system is waken.

The easy-to-carry plus simple-to-install compacted Enclosure guarantees to have quick plug-n-play connection and immediate access for all your valuable data.

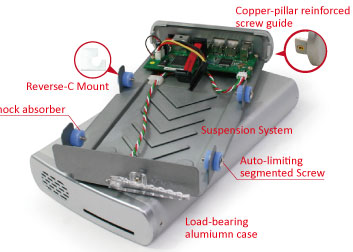

Patented secure mounting system


Having problems upgrading your SATAPro along with the host computer? Try our FireWire 400-to-800 Adapter!
  • Supports current SATA II compliant HDDs, fully backward compatible with SATA 1.0 and SATA 1.0a compliant HDDs

  • Supports Hi-Speed USB data transfer speed up to 480 Mbps

  • Supports eSATA data transfer speed up to 3000 Mbps

  • Supports IEEE 1394a data transfer speed up to 400 Mbps

  • Supports hot-plug and effortless drive swapping

  • Combines enclosure and FireWire repeater functionality

  • Sustains HDD stability, and keep HDD safe from damages and drops with the patented Stable Mounting System (shock-absorbing suspension system, "reverse-C" mounts, and anti-shock chamber)

  • Protects housing with copper pillar reinforced screw guides

  • Provides efficient heat dissipation and maintains optimum HDD operation temperature with rugged aluminum housing

  • Prevents HDD damage due to over-tightening with auto-limiting segmented screws

  • Eliminates power supply removal with built-in power switch

  • Reduces power consumption with HDD spin up/down support

  • Extends connection flexibility to host with plug-n-play via High-Speed USB 2.0, eSATA and IEEE 1934a ports

  • Specifications Download
    Bus Interface eSATA / USB2.0 / IEEE 1394a
    Data Speeds eSATA : up to 1500 Mbps
    USB 2.0 Port: up to 480Mbps
    IEEE 1394a (FireWire 400) port: up to 400 Mbps

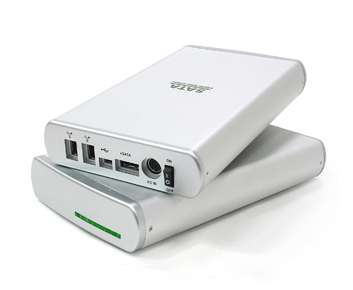

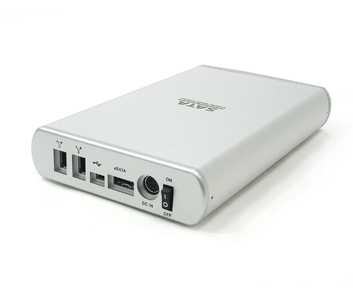

    Connector One USB mini-B receptacle
    Two 6-Pin 1394a connectors
    One eSATA connector (shielded SATA II connector)
    HDD Support 3.5" HDD with SATA interface (support of SATA II and 1.0/1.a)
    LED Power / Access
    Power Supply 12V/2A and 5V/2A dual output, 90~264V AC/DC adapter
    Dimension (L x W x H) 226 x 133 x 36 MM
    Weight (without HDD) 550 G

    English Deutsch Français
    This update is to enable 3TB drive in SATAPro 3.5-inch enclosure. This firmware update must be done for Windows XP or Vista in 32-bit systems with USB connection.
    Review
    Absolutely low-vibration and noise operation
    ONNTO TA-M12O and TB-M12O are the right choice of the silent and light weight external hard disks...tested in the MacUp 04/2008.
  • SATAPro 3.5-inch HDD Enclosure
  • USB cable
  • eSATA cable
  • 1394a cable
  • External power supply
  • Fastening screws
  • Quick start guide
