TB-S12O
SATAPro 2.5" USB/1394a/1394b HDD Enclosure

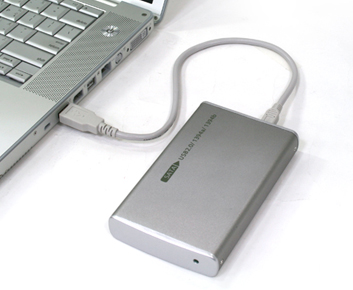

The SATAPro 2.5" TB-S12O HDD Enclosure houses a SATA HDD with protection inside an external enclosure and can be connected to any host computer via one USB interface, one FireWire 400, and two FireWire 800 connection ports.

  • ¡UOverview
  • ¡UFeatures
  • ¡USpecifications
  • ¡UReview
  • ¡UPackage

The SATAPro 2.5" TB-S12O HDD Enclosure offers a solution for users that wish to use an external SATA solution for a notebook or home computer. The TB-S12O extends connection flexibility with one USB interface, one FireWire 400, and two FireWire 800 port.

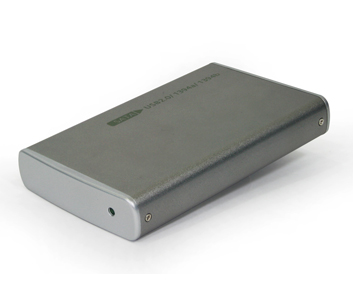

The rugged aluminum housing provides efficient heat dissipation while maintaining optimum HDD operation temperature, and impact protection while keeping your high RPM SATA hard drive safe from damages and drops.

The patented secure-fixing mechanism and anti-shock damper strips sustain HDD stability and the HDD spin down function ensures efficient operation. To automatically reduce power consumption, the hard disk inside the Enclosure spins down during sleep mode and automatically spins up when the host system is waken.

The easy-to-carry plus simple-to-install compacted Enclosure guarantees to have snappy plug-n-play connection and immediate access for all your valuable data.

Patented secure-fixing mechanism


  • Supports current SATA II compliant HDDs, fully backward compatible with SATA 1.0 and SATA 1.0a compliant HDDs

  • Supports Hi-Speed USB data transfer speed up to 480 Mbps

  • Supports IEEE 1394 data transfer speed up to 400Mbps (FireWire 400) and 800Mbps (FireWire 800)

  • Reduces power consumption with HDD spin down support

  • Combines enclosure and FireWire repeater functionality

  • Connects to host by plug-n-play

  • Supports Hot-plug and Hot-Swap

  • Supports hard drive with full-length bridgeboard

  • Resists impact damage with anti-shock damper strips

  • Prevents HDD damage due to over-tightening with auto-limiting segmented screws

  • Protects housing with copper pillar reinforced screw guides

  • Maximizes thermal protection with aluminum construction

  • Specifications Download
    Interface USB2.0/ IEEE 1394a/ IEEE 1394b
    HDD Support 2.5" HDD with SATA interface (support of SATA II and 1.0/1.a)

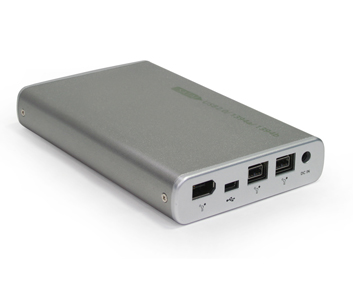

    Connector One USB mini-B receptacle
    One 6-Pin 1394a connector
    Two 9-Pin 1394b bilingual connectors
    LED Power On / Access
    Dimension (L x W x H) 129.5 x 80 x 21 MM
    Weight (without HDD) 155 G
    Power Supply 5V/2A, 110~240V universal AC/DC adapter or 1394 Bus Power

    Review
    ONNTO TB-S12O
    via FW800 reaches to an outstanding 40.2 MB/s. It is highly suggested to use this interface when working with giant files.
    Handy Package
    Onnto' s external combo HDD enclosure with USB and FireWire interface allows the installation of 2.5" SATA HDDs.....
    • TB-S12O
    • USB Y-cable
    • 1394a cable
    • 1394b cable
    • External power supply
    • Fasten screws
    • Footpads
    • Soft case
    • Quick start guide
