TA-S12O
DataTale SATAPro
The SATAPro 2.5-inch HDD Enclosure houses a SATA HDD with protection inside an external enclosure and can be connected to any host computer via one USB interface and two FireWire 400 connection ports.

  • ¡UOverview
  • ¡UFeatures
  • ¡USpecifications
  • ¡UReview
  • ¡UPackage

The SATAPro 2.5-inch HDD Enclosure offers a solution for users that wish to use an external SATA solution for a notebook or home computer. The SATAPro 2.5-inch HDD Enclosure extends connection flexibility with one USB interface and two FireWire 400 port; thus, reducing device footprint while delivering exceptional performance and reliability for both Mac and PC users.

The rugged aluminum housing provides efficient heat dissipation while maintaining optimum HDD operation temperature, and impact protection while keeping your high RPM SATA hard drive safe from damages and drops.

The patented secure-fixing mechanism and anti-shock damper strips sustain HDD stability and the HDD spin down function ensures efficient operation. To automatically reduce power consumption, the hard disk inside the Enclosure spins down during sleep mode and automatically spins up when the host system is waken.

Host-provided bus power can be supplied by the DC Jack to USB Cable and eliminates the need for an AC adapter during travels. The easy-to-carry plus simple-to-install compacted Enclosure guarantees to have quick plug-n-play connection and immediate access for all your valuable data.

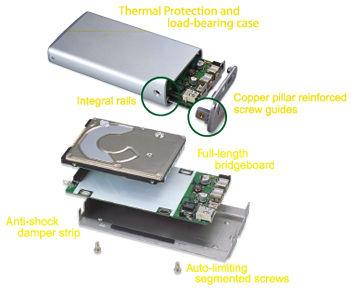

Patented secure-fixing mechanism

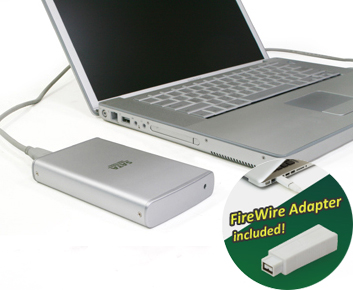

Having problems upgrading your SATAPro along with the host computer? Try our FireWire 400-to-800 Adapter!
An optional HDD Protection Case accessory is available for further protection.
  • Supports current SATA II compliant HDDs, fully backward compatible with SATA 1.0 and SATA 1.0a compliant HDDs

  • Supports Hi-Speed USB data transfer speed up to 480 Mbps

  • Supports Hi-Speed USB data transfer speed up to 480 Mbps

  • Supports IEEE 1394 data transfer speed up to 400Mbps

  • Supports hot-plug and effortless drive swapping

  • Combines enclosure and FireWire repeater functionality

  • Supports hard drive with full-length bridgeboard

  • Protects housing with copper pillar reinforced screw guides

  • Provides efficient heat dissipation and maintains optimum HDD operation temperature with rugged aluminum housing

  • Prevents HDD damage due to over-tightening with auto-limiting segmented screws

  • Extends connection flexibility to host with plug-n-play via High-Speed USB 2.0 and IEEE 1934a ports

  • Specifications Download
    Bus Interface USB2.0 /1394a
    Data Speeds USB 2.0 Port: up to 480Mbps
    IEEE 1394a (FireWire 400) port: up to 400 Mbps
    Connector One USB mini-B connector
    Two 6-Pin 1394a connectors
    HDD Support 2.5" HDD with SATA interface (support of SATA II and 1.0/1.0a)
    LED Power/Access
    Dimension (LxMxH) 131 x 80 x 21 MM
    Power Supply 5V/2A, 110~240V universal AC/DC adapter, 1394 bus power, or USB bus power
    Weight (without HDD) 150 G

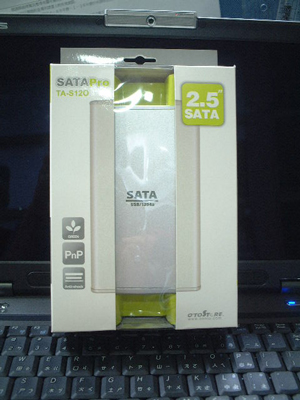

  • SATAPro 2.5-inch HDD Enclosure
  • USB Y-cable
  • 1394a cable
  • Fasten screws
  • Footpads
  • Quick start guide
