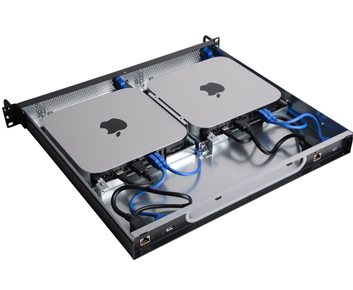

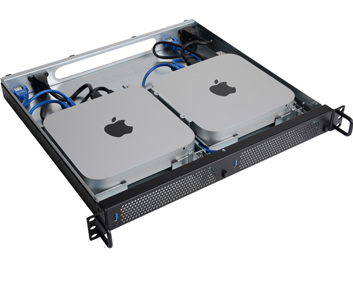

DataTale RACK M-100 & M-120 Mac Mini RACK enclosure is the best solution for adding one or two Mac mini server and computer to a standard rack chassis, supporting one or two Mac mini side-by-side with easy access to its main ports. DataTale RACK M-100/M-120 uses 1U height and can be optionally equipped with slide rails for even better access to the Mac mini installed.

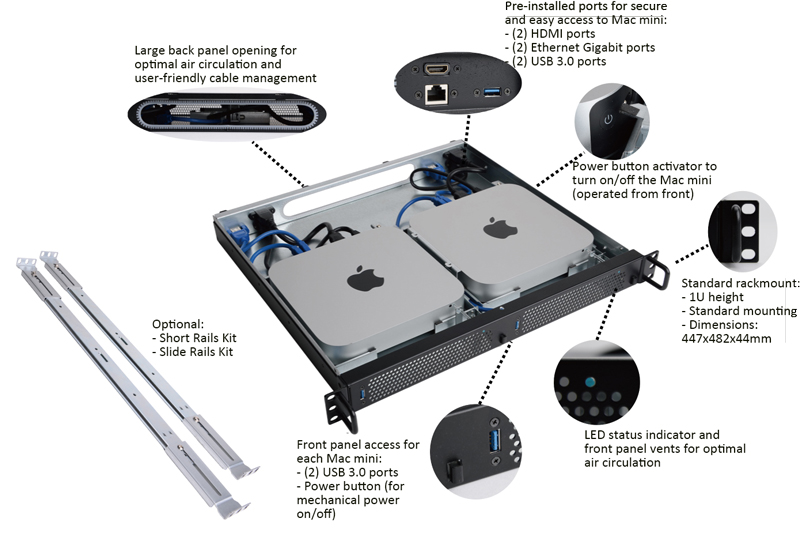

The RACK M-100 & M-120 is equipped with pre-installed ports, allowing easy access to Mac Mini's HDMI port, Ethernet Gigabit port and USB 3.0 ports. It also provides a front panel power switch to power on/off the Mac mini as well as a USB 3.0 port to conveniently access each Mac mini from the front (i.e. attaching a keyboard/mouse).
|
|
| Specifications |
Download |
| Cable/Connector |
2x USB 3.0 cable/port front,
2x USB 3.0 cable/port rear,
2x HDMI cable/port rear,
2x Ethernet cable/port rear
|
| Compatibility |
Mac mini (Mid 2010, Mid 2011, Late 2012)
Mac mini Server (Mid 2010, Mid 2011, Late 2012)
|
| Rackmount Standard |
1U
|
| System Material |
Metal Housing
|
| LED Indicator |
Mac mini power status indication
|
| Dimension |
447 x 482 x 44 mm
|
| Weight |
4.2 KGS
|
| |
|
|
|
|
|
|
Rackmount 1U enclosure for (2) Mac mini*
USB cable x 4
HDMI cable x 2
Ethernet Gigabit cable x 2
Lid
Screws
*Mac mini not included
Optional
Short Rails kit: 373.50mm (P/N 460-23138001)
Slide Rails Kit: 550 ~ 615mm (P/N 460-23148001)
|
|
|
|
|
