RS-M4T
SMART 4-Bay Thunderbolt™ RAID System
With speeds up to three times faster than FireWire 800, two times faster than USB3.0, DataTale SMART Thunderbolt Series features RAID security, hot-swappable disks, and convenience for daisy chain. The onboard LED indicators keep users apprised of the system, connection, fan error and HDD status/access.

  • Overview
  • Features
  • Specifications
  • Review
  • Package

The Thunderbolt™Technology is the newest, most powerful, and flexible I/O technology ever created for a personal computer today. It can be utilized to many products, but the most popular usage is in storage products. Thunderbolt™ technology offers lighting data transfer speed and daisy chain up to six devices without degrading the speed rates.

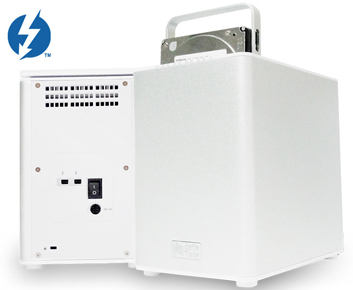

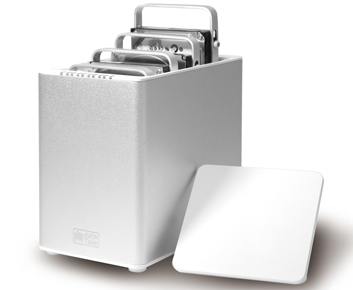

The Powerful Storage for Professionals: SMART RS-M4T 4-Bay RAID System
The audio/video editing users or heavy data users will enjoy the speed, flexibility, and simplicity, delivered by DataTale SMART RS-M4T Thunderbolt™SMART RAID system.
With speeds up to 12 times faster than FireWire 800, 2 times faster than USB3.0, DataTale SMART Thunderbolt™Series features RAID security, hot-swappable disks, and convenience for Daisy Chain. The onboard LED indicators keep users apprised of the system, connection, fan error and disk status/access.

RAID on Thunderbolt™RAID MASTER
SMART RS-M4T Thunderbolt™RAID System permits straightforward hardware RAID mode- JBOD (None RAID), RAID 0 (Striping), RAID 1 (Mirroring), RAID 10 and HyperDuo, which can b set by RAID MASTER. The RAID MASTER, GUI (Graphic User Interface), allows professionals and enterprises to centralize and effectively supervise complicated RAID applications. With the RAID MASTER, one can configure multiple RAID tasks, receive reports on any system problems, and customize RAID management for the RAID System!



Fast and Secure Data Backup: HyperDuo Feature
The SMART RS-M4T RAID System also provides a unique RAID mode to utilize both SSDs(solid-state drive) and hard drives(HDD) in the same RAID System. In the HyperDuo feature, near-SSD performance is achieved by using algorithms to automatically migrate hot data to SSDs. Under this feature, the RAID System can turn into a hybrid or external boot-up Unit, which will bring out the best in both hard and solid-state drives. The HyperDuo feature has 2 RAID modes: Safe RAID mode and Capacity RAID mode. The Safe RAID mode provides optimal data protection by mirroring data from the SSD to the hard drive for maximum resiliency. The Capacity RAID mode combines both the SSD and hard drive capacities, but reads the data using SSD performance.


1. The HyperDuo feature can have one hard drive (HDD) at least, but support up to three solid-state drives (SSD).
2. The Capacity mode combines both the SSD and hard drive capacities, but reads the data using SSD performance.


Smartly Position and Utilize the Hard Drive/SSD: SmartGuider2

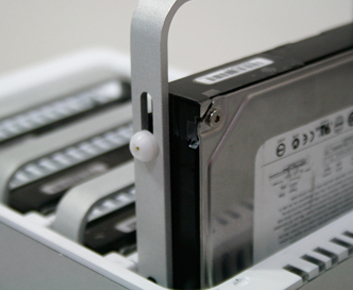

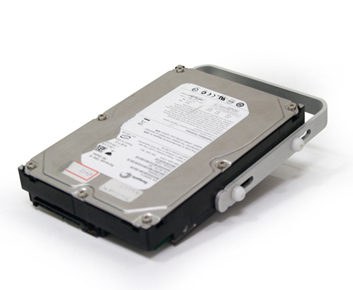

The patented SmartGuider is a trayless fixing mechanism that equipped auto-limiting segmented screws to prevent hard drive/SSD damages from over-tightening when they are installed, and positions them upright to maximize airflow while exhausting heat via surrounding vents. By combining the SmartGuider together with the robust aluminum casing, vents and low-dB fans, the entire SMART Thunderbolt™ RAID Systems becomes a smart yet economical channel for heat dissipation!

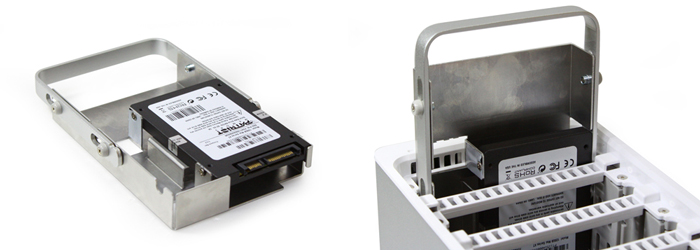

The standard RS-M4T packaging contains one SmartGuider for SSD and four SmartGuider for 3.5" HDD. The SSD SmartGuider kit is also available for the DataTale SMART Thunderbolt RAID Systems and can be purchased separately.

Valued offer: RS-M4T with 1M Thunderbolt™cable purchased
By using the Thunderbolt™ technology,one single cable (electrical) can link all the desired devices together! Furthermore, when bus-powered device(s) are connected (after the SMART Thunderbolt™RAID Systems), dual-channeled power delivery and bi-directional data transfer are available using the Thunderbolt™Table! The Thunderbolt™ Cable doesn't come with the standard RS-M4T package. However, when the SMART RS-M4T RAID System and the 1M white Thunderbolt™ cable are purchased together, it is a better bargain than if purchased separately.


1: Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation in the US and other countries.
2: Taiwan New Design Patent M354309


  • Connects via ThunderboltTM ports, up to 10 Gbps data transfer rate

  • Supports SATA hard drives (up to 6 Gbps) and SSDs

  • Provides multiple RAID tasks: JBOD (None RAID), RAID 0 (Striping), RAID 1 (Mirroring), RAID 10 and HyperDuo

  • Compatible with Time Machine (Apple) for backups and file protection

  • Provides multiple devices with increased speed and flexibility via Daisy Chain

  • Monitors system status via LED indicators or GUI

  • Configures RAID modes easily using RAID MASTER (GUI)

  • Features effortless and trayless hard drive/SSD hot-swap & hot-plug with SmartGuider

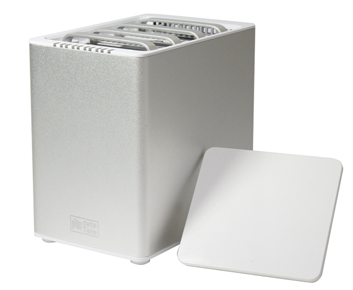

  • Dissipates heat efficiently with aluminum housing and SmartGuider design

  • Maximizes airflow with silent fans and mechanical designs
  • Specifications Download
    HDD Support 3.5-inch SATA HDD or SSD
    Connector Thunderbolt port x 2
    Data Transfer Speed Up to 10 Gbps
    RAID mode
    JBOD, RAID 0, RAID 1, RAID 10, HyperDuo (Safe/Capacity)
    LED Indicator
    Power/Connect/Health/ Access/Rebuild/RAID Alert/ Fan Error
    System Material
    Aluminum case with plastic parts
    Power Supply
    Input: AC 100~240V, Output: DC +12V/7.5A
    FAN High performance FAN x 2
    Dimension 210 (L) x 138 (W) x 213 (H) mm
    8.27 (L) x 5.45 (W) x 8.39 (H) inch
    Weight (w/o HDD) 2.42 KG
    5.33 lbs
    System Requirments Computer with a Thunderbolt port
    Mac OS 10.7 or above
    Thunderbol Cable is purchased seperately

    English
    This GUI is installed under Windows 7/8 and Server 2008/2012 for RAID configurations.
    The RAID MASTER (GUI) is the RAID configuration for SMART Thunderbolt RAID System (RS-M4T, RS-M2T, RS-S2T). Do not apply it to the FireWire RAID Systems.
    This driver is for Thunderbolt device being able to be Plug & Play on a Windows OS. This installation is only for Windows 7/8, and Server 2008/2012.
  • 4-Bay RAID Unit
  • Thunderbolt Cable*
  • External Power Supply
  • 4 HDD SmartGuider Kit (includes 16 HDD Screws
  • 1 SSD SmartGuider Kit (includes 4 SSD Screws
  • RAID MASTER CD
  • Quick Start Guide
  • *The cable is purchased seperately
