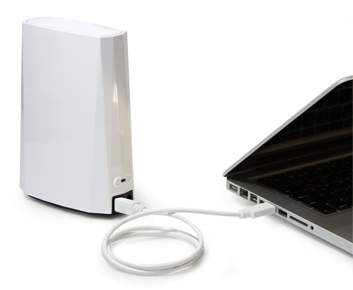

The modern Crystal USB 3.0 Hard Drive Enclosure comes with a hidden LED that reflects downward onto the surface for immediate monitoring, and curved rubber feet on its bottom panel to make sure the stance is steady & firm! What's more is that the Crystal USB 3.0 Hard Drive Enclosure permits 10 times the data speed*, much faster than the traditional USB 2.0, by providing the groundbreaking USB 3.0 technology! Furthermore, it complies with the European Union's latest green power ErP (Energy Related Products) Directives!
*Only applies if operated with a USB 3.0 host port
SuperSpeed USB 3.0
The Crystal USB 3.0 Hard Drive Enclosure is created with the SuperSpeed USB 3.0 application and made backward-compatible with all present USB 2.0 hosts. Because of the SuperSpeed USB 3.0, the utmost data speed has improved to 5 Gbit/s*, instead of hitting the limits at 480 Mbit/s (60MB/s) for USB 2.0! Simply by utilizing an USB 3.0 host card, one can enjoy the pleasure of rapid data speed without needing to upgrade the entire host system!

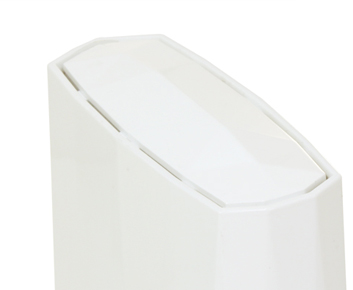

Excellent Heat Dissipation
The vertical design allows hot air to naturally flow through the top panel ventilation holes, supplying a more efficient heat dissipation environment!
Reduce Power Consumption
The hard drive spin up/down feature along with the avoidable need for a power on/off switch present an automatic save on energy for power consumption. Once connected via USB cable, the host computer will automatically detect the hard drive and turn it on, or put it to sleep/on standby.

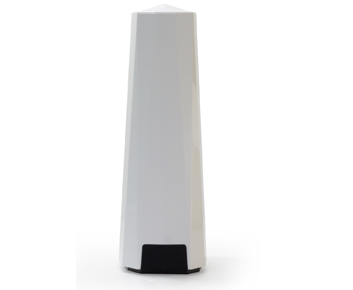

Upright Position

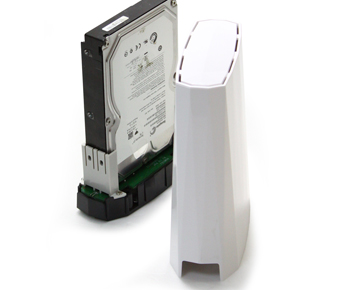

In addition to better heat dissipation, the Crystal USB 3.0 Hard Drive Enclosure's upright positioning plus protective mechanics make housing assembly a piece of cake while saving desktop space!
White Sleek Case
The Crystal USB 3.0 Hard Drive Enclosure supports a stylish housing for any 3.5-inch SATA hard drive. Its shiny and exceptional heat-resistance casing with sexy linings reflects gracefulness.

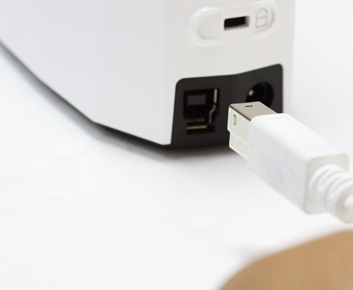

Powers On/Off Via USB Cable
Due to its by plug-n-play feature when connected to host, the Crystal USB 3.0 Hard Drive Enclosure is engineered to shut down by unplugging the USB cable, even if the A/C adapter is still plugged-in. This will even assist in boosting the hard drive's life-term to its full potential!
|
|
Compatible with both USB 2.0 and 3.0
Available data transfer speed up to 5Gbits/s (under USB 3.0) and up to 480Mbits/s (under USB 2.0)
Supports SATA compliant hard drive
Reduces power consumption with hard drive spin up/down support
Connects to host by plug-n-play
Powers on/off via USB cable instead of A/C adapter or power button
Increases heat dissipation and saves desktop space by utilizing an upright position so hot air can naturally float through the top panel ventilation holes
Reveals instant status via hidden LED shining downward onto surface
Provides steady and firm stance via curved rubber feet on its bottom panel
|
|
|
| Specifications |
Download |
| Connector |
USB 2.0/3.0 x 1
|
| Hard Drive Support |
3.5" SATA hard drive
|
| Data Transfer Speed |
USB 3.0: up to 5Gbits/s
USB 2.0: up to 480Mbits/s
|
| Read/Write Speed |
120MB/s
(Under Windows 7 with a Seagate 2TB hard drive)
|
| System Material |
Plastic casing
|
| Status Indicator |
Power On / Access
|
| Power Supply |
Output: 12V/1.5A, Input: 100~240V
Universal AC/DC adapter
|
| Dimension |
131 (L) x 63 (W) x 180 (H) mm
|
| Weight (without hard drive) |
220 g
|
| Certificates |
CE, FCC, ErP/EuP
|
| |
|
|
|
|
|
Crystal USB 3.0 Hard Drive Enclosure
USB cable
External power supply
HDD screws
Quick start guide
|
|
|
|
|
